New Vigor Piling Hydraulic Power Units

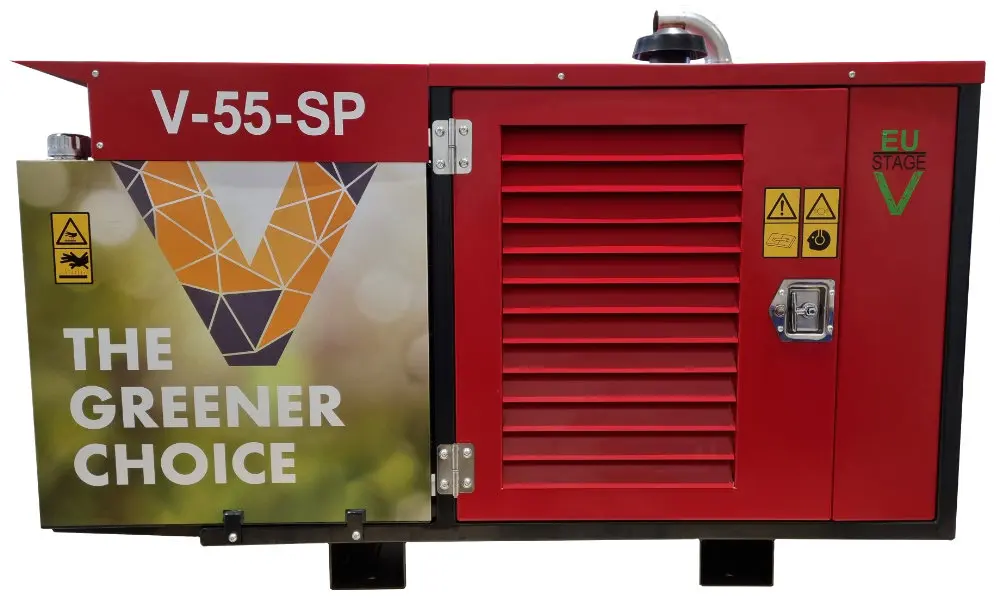

Vigor V-55-SP Hydraulic Power Unit

 Specifications
EngineDaedong/Kioti Stage V 19 bkW
RPM2.400
Drive PumpHydraut
Max. Pressure210 bar
Oil Flow55 l/min.
Fuel capacity60 liter
 Specifications
Hydraulic Capacity200 liter
Length1.544 mm.
Width800 mm.
Height1.000 mm.
Weight+/- 800 kg.

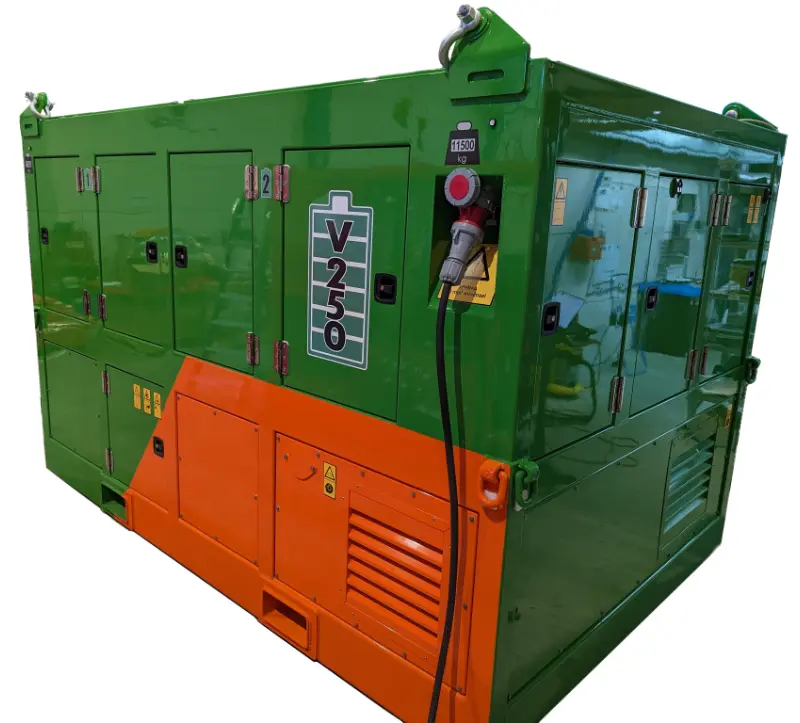

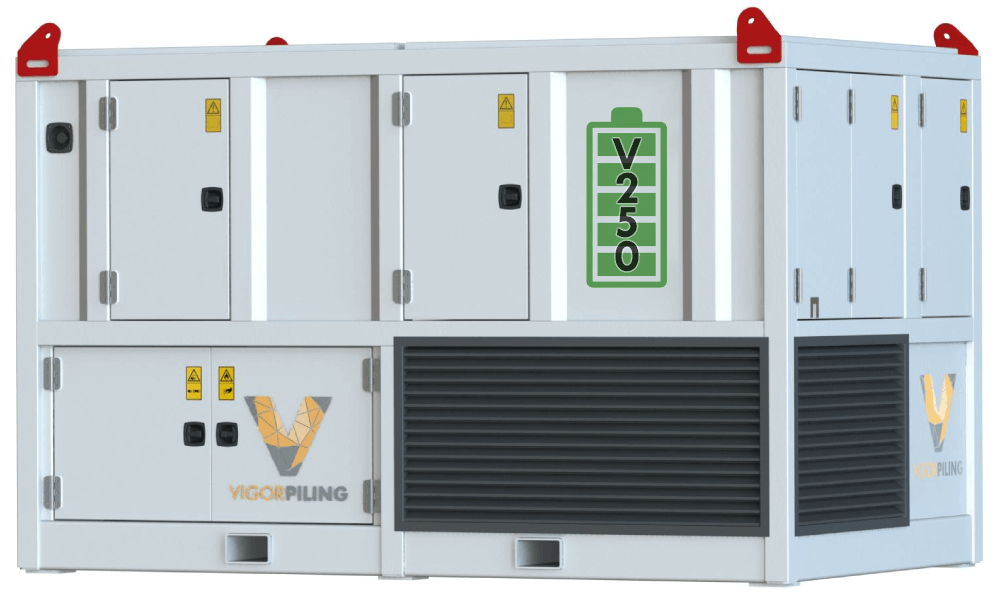

Vigor V-250-E Electric Hydraulic Power Unit

Our best-selling HPU is ready for the future: fully battery powered, quiet and emission-free. Featuring double battery packs with a total capacity of 500 kW and integrated battery chargers with a 400V, 63A 3-phase power input.

 Specifications
EngineParker
RPM1.800
Drive PumpSauer Danfoss
Max. Pressure350 bar
Oil Flow250 l/min.
Battery capacity500 kW
 Specifications
Hydraulic Capacity900 liter
Length3.400 mm.
Width2.020 mm.
Height2.100 mm.
Weight+/- 10.000 kg.
More informationPDF

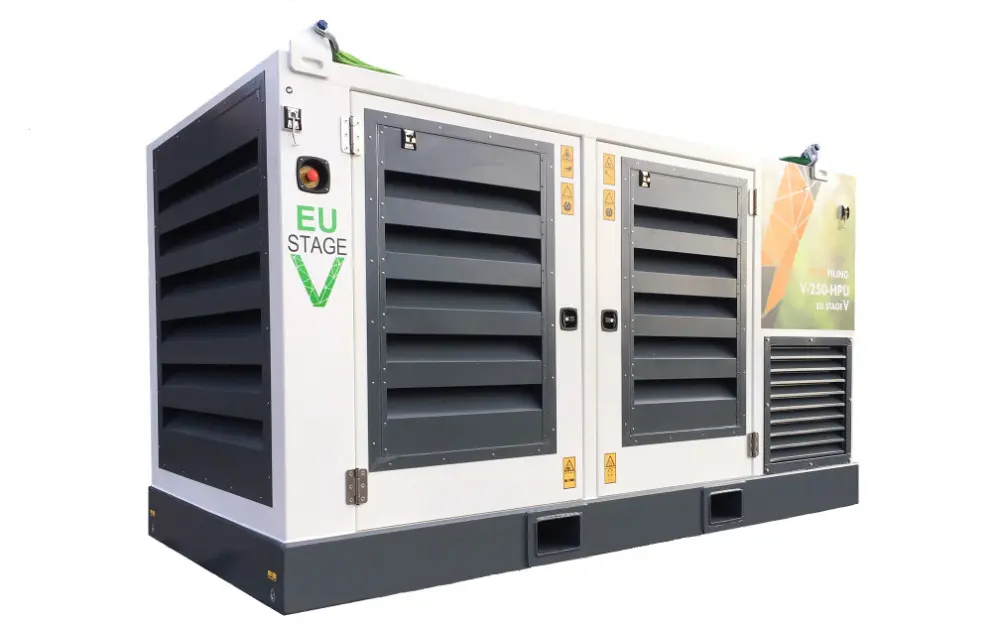

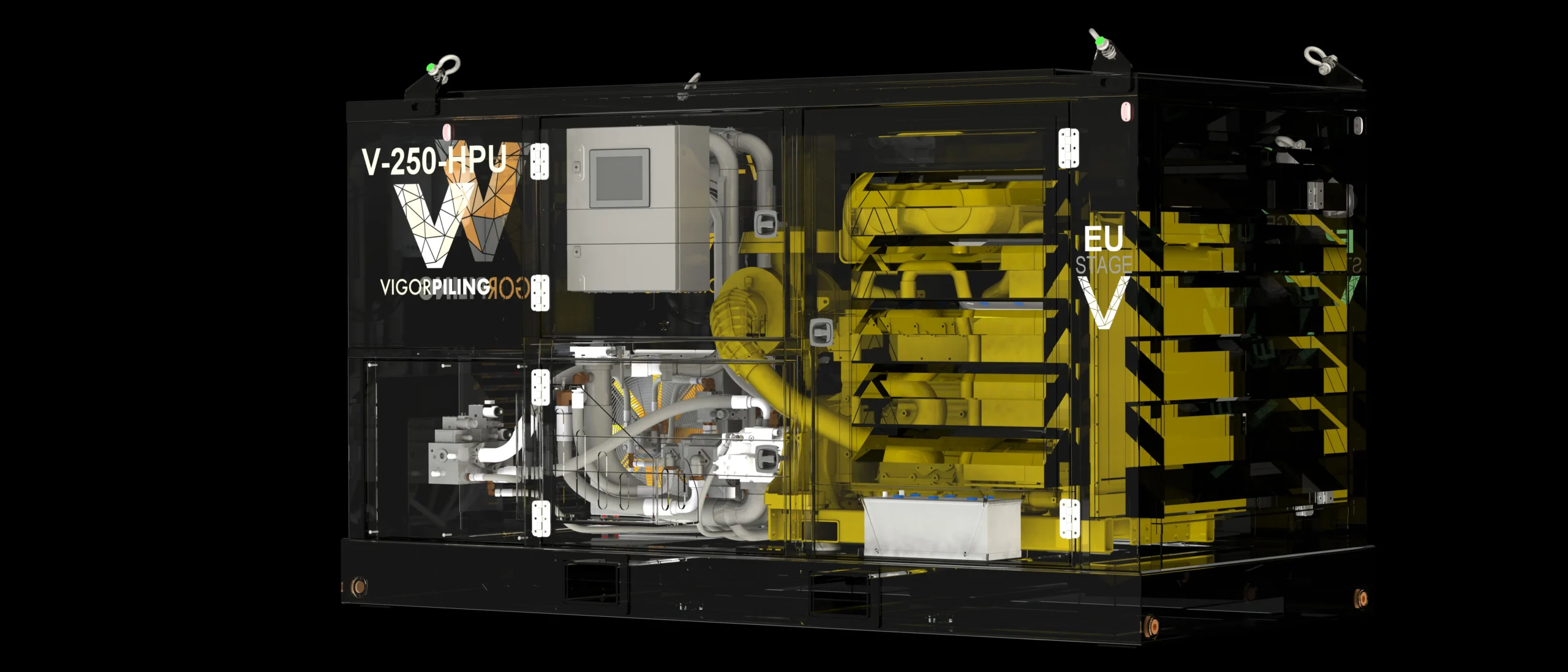

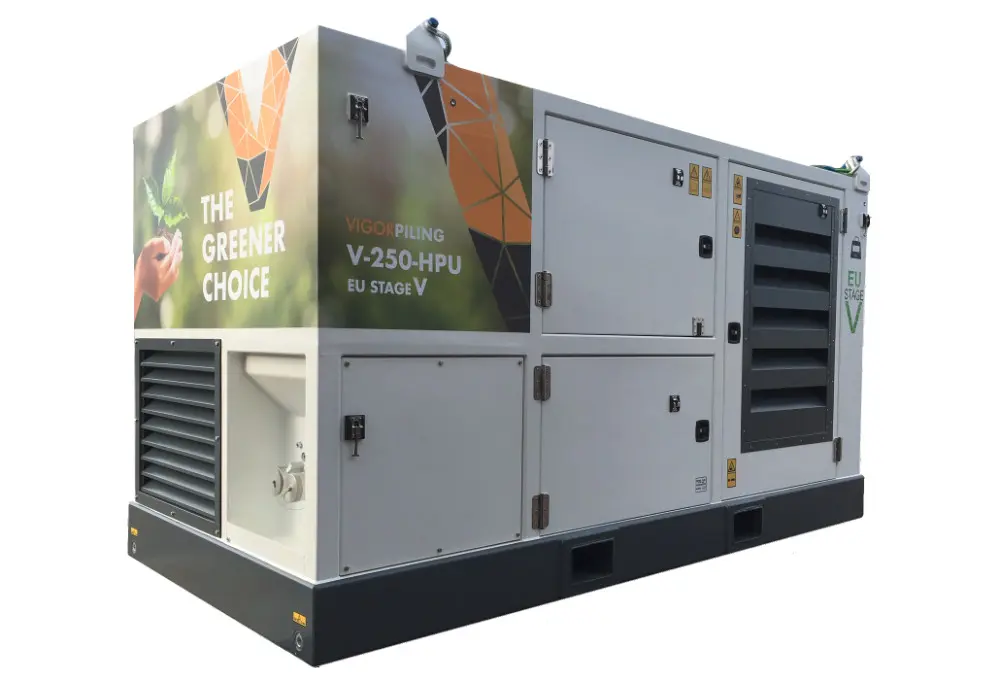

Vigor V-250 Hydraulic Power Unit

The Vigor V-250 is the smallest powerpack in our product range, but nevertheless still packs a serious punch for its size.

 Specifications
EngineCaterpillar C7.1 Stage V 205 bkW
RPM1.900
Drive PumpSauer Danfoss
Max. Pressure350 bar
Oil Flow250 l/min.
Fuel capacity565 liter
 Specifications
Hydraulic Capacity950 liter
Length3.500 mm.
Width1.700 mm.
Height2.037 mm.
Weight+/- 4.000 kg.

Vigor V-320 Hydraulic Power Unit

 Specifications
EngineVolvo TAD 571 VE Stage V
RPM1.800
Drive PumpSauer Danfoss
Max. Pressure320 bar
Oil Flow320 l/min.
Fuel capacity500 liter
 Specifications
Hydraulic Capacity900 liter
Length3.800 mm.
Width1.650 mm.
Height2.100 mm.
Weight+/- 5.250 kg.

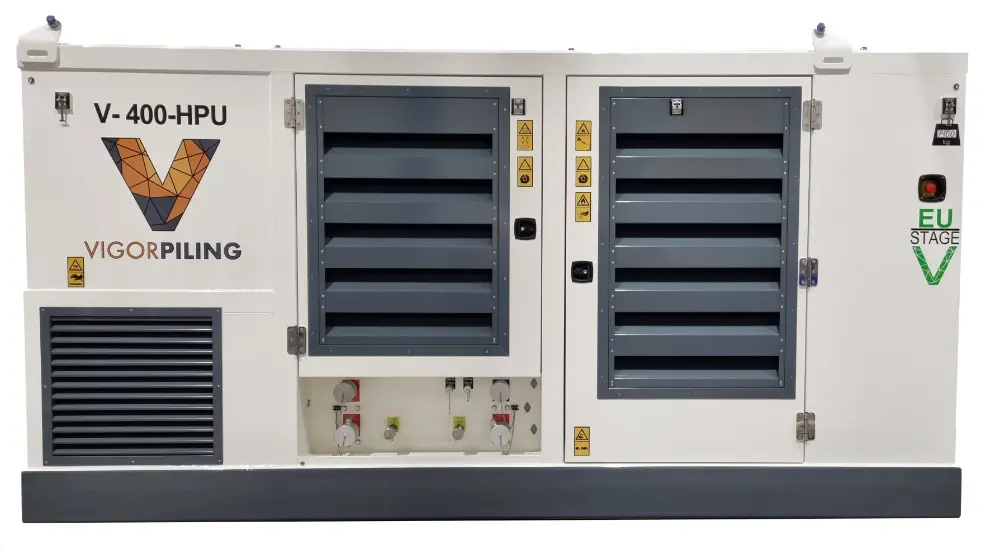

Vigor V-400 Hydraulic Power Unit

 Specifications
EngineCaterpillar C13 Stage V 400 bkW
RPM1.800
Drive PumpSauer Danfoss
Max. Pressure350 bar
Oil Flow440 l/min.
Fuel capacity1.500 liter
 Specifications
Hydraulic Capacity1.200 liter
Length4.200 mm.
Width1.850 mm.
Height2.292 mm.
Weight+/- 7.400 kg.

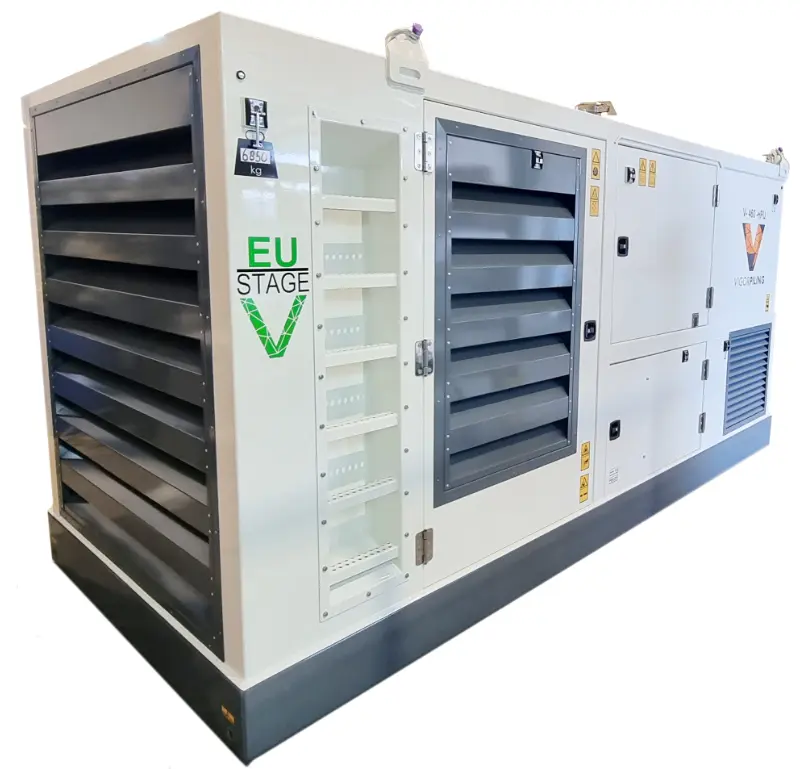

Vigor V-460 Hydraulic Power Unit

 Specifications
EngineVolvo TAD1384-VE Dual label
RPM1.800
Drive PumpSauer Danfoss
Max. Pressure350 bar
Oil Flow460 l/min.
Fuel capacity1.500 liter
 Specifications
Hydraulic Capacity1.200 liter
Length4.200 mm.
Width1.850 mm.
Height2.292 mm.
Weight+/- 7.400 kg.

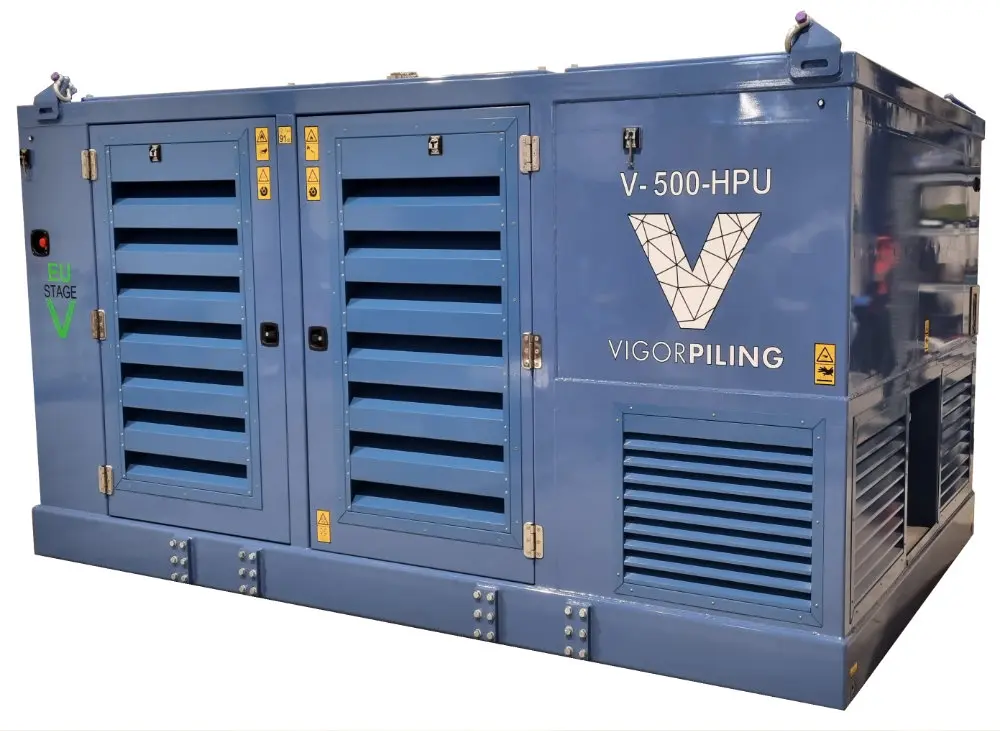

Vigor V-500 Hydraulic Power Unit

 Specifications
Engine2x Caterpillar C7.1 Stage V 205 bkW
RPM1.850
Drive PumpSauer Danfoss
Max. Pressure350 bar
Oil Flow500 l/min.
Fuel capacity925 liter
 Specifications
Hydraulic Capacity1.250 liter
Length4.005 mm.
Width2.350 mm.
Height2.265 mm.
Weight+/- 8.950 kg.

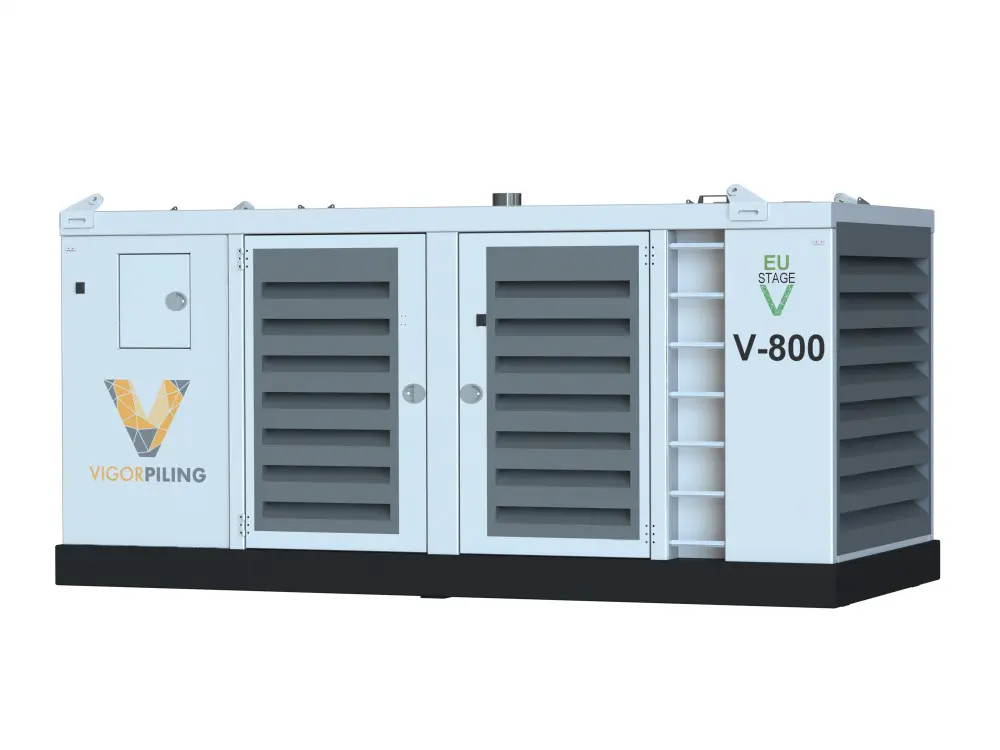

Vigor V-800 Hydraulic Power Unit

 Specifications
EngineVolvo TWD1683 Stage V 585 bkW
RPM1.700
Drive PumpSauer Danfoss
Max. Pressure320 bar
Oil Flow800 l/min.
Fuel capacity1.200 liter
 Specifications
Hydraulic Capacity2.150 liter
Length5.000 mm.
Width2.250 mm.
Height2.420 mm.
Weight+/- 10.000 kg.

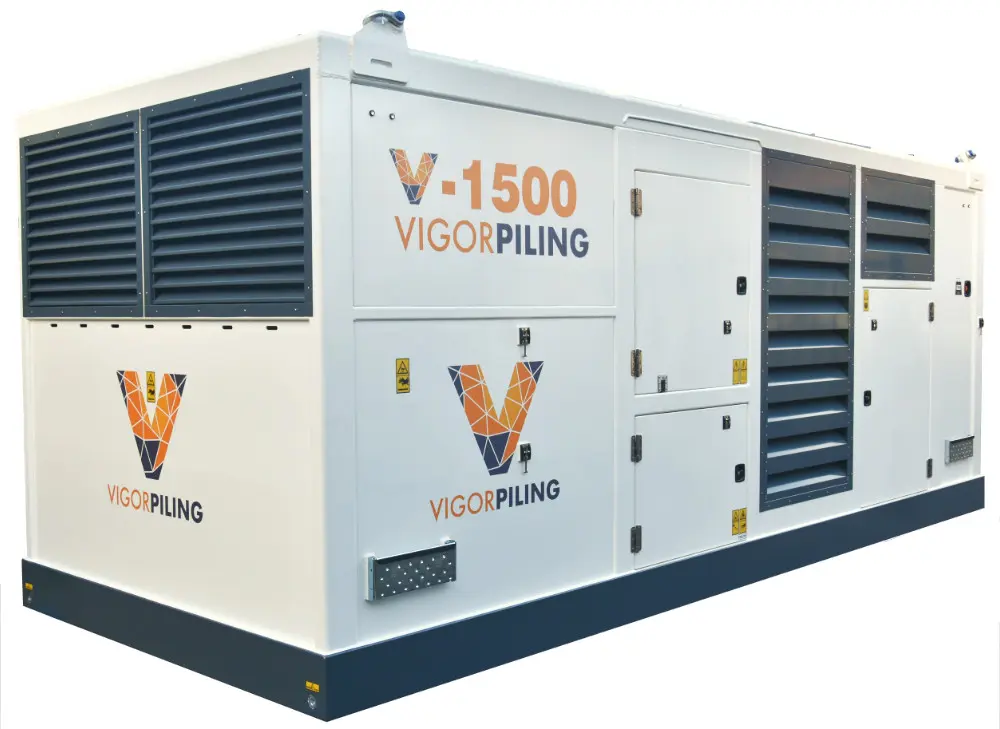

Vigor V-1500 Hydraulic Power Unit

The Vigor V-1500 is the largest HPU we’ve built so far, roughly the size of a 20ft. container.

 Specifications
Engine2x Volvo 1651GE (496 kW) Stage 3A
RPM1.800
Drive Pump4x Sauer Danfoss
Max. Pressure325 bar
Oil Flow1.500 l/min.
Fuel capacity1.500 liter
 Specifications
Hydraulic Capacity 3.700 liter
Length6.276 mm.
Width2.660 mm.
Height2.250 mm.
Weight+/- 20.000 kg.
